CommonSpec is a structured Markdown language for typed, traceable specifications.

SpecCompiler logo

CI Coverage License Status: Alpha

CommonSpec, SpecIR & SpecCompiler

CommonSpec is a structured Markdown language for authoring typed, traceable specifications. It extends standard Markdown with six constructs — specifications, objects, floats, attributes, relations, and views — that give documents a formal type system.

SpecIR is a typed relational intermediate representation stored in SQLite. CommonSpec compiles into SpecIR. Other formats (ReqIF, DOORS CSV) can also encode and decode into SpecIR, making it a universal interchange hub for specification data.

SpecCompiler is the reference compiler. It lowers CommonSpec into SpecIR and executes declarative structural constraints over the resulting model.

By imposing a type system on Markdown, SpecCompiler guarantees referential and schema integrity: detecting invalid object kinds, missing mandatory attributes, and traceability gaps at compile time.

"The fundamental purpose of a type system is to prevent the occurrence of execution errors during the running of a program." Cardelli, Type Systems

The fundamental purpose of SpecCompiler is to prevent the occurrence of findings during the review of a specification.

See It in Action

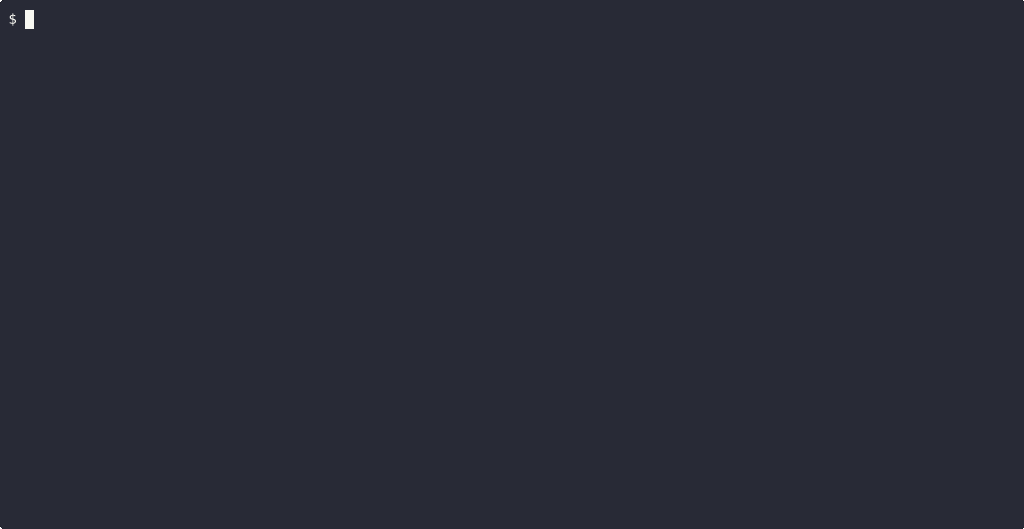

SpecCompiler demo: writing CommonSpec, catching type errors, and compiling to DOCX

Well-typed specifications don't go wrong.

Output

DOCX (Print is Default): Maps types directly to DOCX style presets and supports direct OOXML transformations. Generate branded corporate templates or academic formats.

HTML + WASM (Web Native): A self-contained html file bundled with SQLite.js enables queries directly in the browser without any server infrastructure.

ReqIF (Interoperability): Author and validate your specs in Git but emit industry-standard ReqIF to integrate with legacy RE tools.

Anything (that Pandoc supports): The pipeline is extensible via custom Lua filters and post-processing hooks for any format Pandoc can target.

Quickstart

Install

Container (recommended). One command, needs docker or podman (Linux/macOS/WSL2):

curl -fsSL https://raw.githubusercontent.com/SpecIR/SpecCompiler/main/scripts/install.sh | bash

Windows. One command in PowerShell, after Docker Desktop or Podman is installed:

irm https://raw.githubusercontent.com/SpecIR/SpecCompiler/main/scripts/install.ps1 | iex

Native — Ubuntu 24.04 (stock apt pandoc + compiled Lua extensions):

git clone https://github.com/SpecIR/SpecCompiler.git
cd SpecCompiler
bash scripts/install-native.sh

Other Linux distros: install the equivalents of the packages below, then run bash scripts/install-native.sh (its apt step is skipped on non-apt systems):

To build the Docker image locally instead of pulling from GHCR:

git clone https://github.com/SpecIR/SpecCompiler.git
cd SpecCompiler
docker build -t speccompiler-core:latest .
bash scripts/install.sh

Build the docs.

specc build docs/commonspec/project.yaml
specc build docs/specir/project.yaml
specc build docs/user_docs/project.yaml
specc build docs/engineering_docs/project.yaml

Documentation

Published Documentation — generated HTML and DOCX documentation.

CommonSpec Language Specification — formal language definition, syntax, and type system. Published HTML.

SpecIR Schema Specification — intermediate representation, database schema, and public API views. Published HTML.

User Manual — installation, authoring, configuration, and troubleshooting. Published HTML — start here.

Engineering Specifications — SRS, SDD, and SVC for SpecCompiler. Published HTML.

How It Works

A Minimal Spec

srs.md — a requirement in CommonSpec:

# SRS: Login Service

## HLR: Authenticate Users @0013

The system shall authenticate users via OAuth 2.0.

> status: Draft

svc.md — a verification case that covers it:

# SVC: Login Verification

## VC: Verify Authentication

Verify the authentication flow works end to end.

> objective: Confirm OAuth 2.0 login succeeds

> verification_method: Test

> traceability: [0013](@)

CommonSpec → SpecIR → Output

SpecCompiler runs as a Pandoc Lua filter and adds a SQLite middle-end between Pandoc's reader and writer:

0. Type loading (Γ). Before any document is parsed, SpecCompiler reads type definitions from Lua modules and INSERTs them into SpecIR. A type defines what a spec object is: its identifier, display name, PID format, and typed attributes.

For example, the HLR type (models/sw_docs/types/objects/hlr.lua):

M.object = {
    id = "HLR",
    long_name = "High-Level Requirement",
    extends = "TRACEABLE",
    attributes = {
        { name = "rationale", type = "XHTML" },
    }
}

Loading this module produces:

INSERT INTO spec_object_types (identifier, long_name, ...)
VALUES ('HLR', 'High-Level Requirement', ...);

1. Frontend (Pandoc reader). Parse CommonSpec (commonmark_x) into Pandoc AST.

2. Middle-end (SpecCompiler). Lower the AST into SpecIR (SQLite), apply type rules, and assemble the transformed AST. For the two-file spec above, the middle-end produces the following SpecIR entries:

-- Specification (from the # heading)
INSERT INTO specifications (identifier, long_name, type_ref)
VALUES ('srs', 'Login Service', 'SRS');

-- Object (from the ## heading)
INSERT INTO spec_objects (specification_ref, type_ref, pid)
VALUES ('srs', 'HLR', '0013');

-- Attribute (from the > blockquote)
INSERT INTO spec_attribute_values
  (specification_ref, owner_object_id, name, raw_value, enum_ref, datatype)
VALUES ('srs', 1, 'status', 'Draft', 'TRACEABLE_status_Draft', 'ENUM');

-- Relation (from [0013](@) in svc.md's traceability attribute → inferred as VERIFIES)
INSERT INTO spec_relations
  (specification_ref, source_object_id, target_text, type_ref, link_selector, source_attribute)
VALUES ('svc', 2, '0013', 'VERIFIES', '@', 'traceability');

Type-checking is then a query against SpecIR. For example, the verification view invalid_cast checks whether 'Pending' is a legal value for TRACEABLE.status — it is not (only Draft, Review, Approved, Implemented are). And traceability_hlr_to_vc finds HLRs that are never the target of a VERIFIES relation.

3. Backend (Pandoc writer). If no violations are found render the AST to selected formats.

4. Post-processing (optional). Format-specific adjustments to the emitted artifacts. For example, OOXML tweaks in DOCX output or packaging sqlite.js in HTML.
